Electrical Information
|
Model No.
|
BL-HB28-100
|
BL-HB28-120
|
BL-HB28-150
|
BL-HB28-200
|
Power Consumption(±5%)
|
100W
|
120W
|
150W
|
200W
|
Power Supply
|
LIFUD
|
Input Voltage
|
220-240 VAC / 100-277VAC
|
Power Factor
|
>0.92
|
Surge Protection
|
4kV line-line, 4kV line-earth
|
Driver Type
|
Constant Current (CC)
|
Control
|
dimmable, DALI, Daylight Sensor, Microwave Sensor, PIR Sensor
Zigbee Wireless Control
|
Optic Information
|
LED Type
|
LED 3030
|
Luminous Flux (±10%)
|
13000lm
|
15600lm
|
19500lm
|
26000lm
|
Efficacy (5000K Ra70)
|
130LM/W
|
Correlated Color Temperature
|
5000K (3000K, 4000K optional)
|
Color Rendering Index
|
Ra70 (Ra80 optional)
|
Beam Angle
|
H00B22, H00112, H00B21, H00110, H00109
|
UGR level
|
26
|
Dimentions and Mount
|
Product Dimension
|
φ239x181mm
|
φ271x182mm
|
φ271x186mm
|
Luminaire Net Weight
|
2.27±0.3kg
|
2.81±0.3kg
|
3.15±0.3kg
|
Export Carton Size
|
264x264x220mm
|
296x296x220mm
|
Gross Weight
|
2.85±0.3kg
|
3.5±0.3kg
|
3.84±0.3kg
|

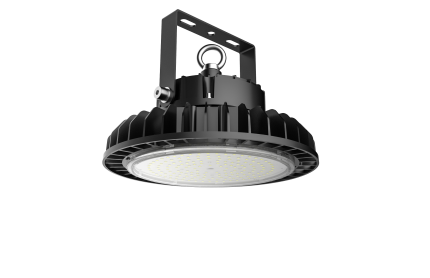

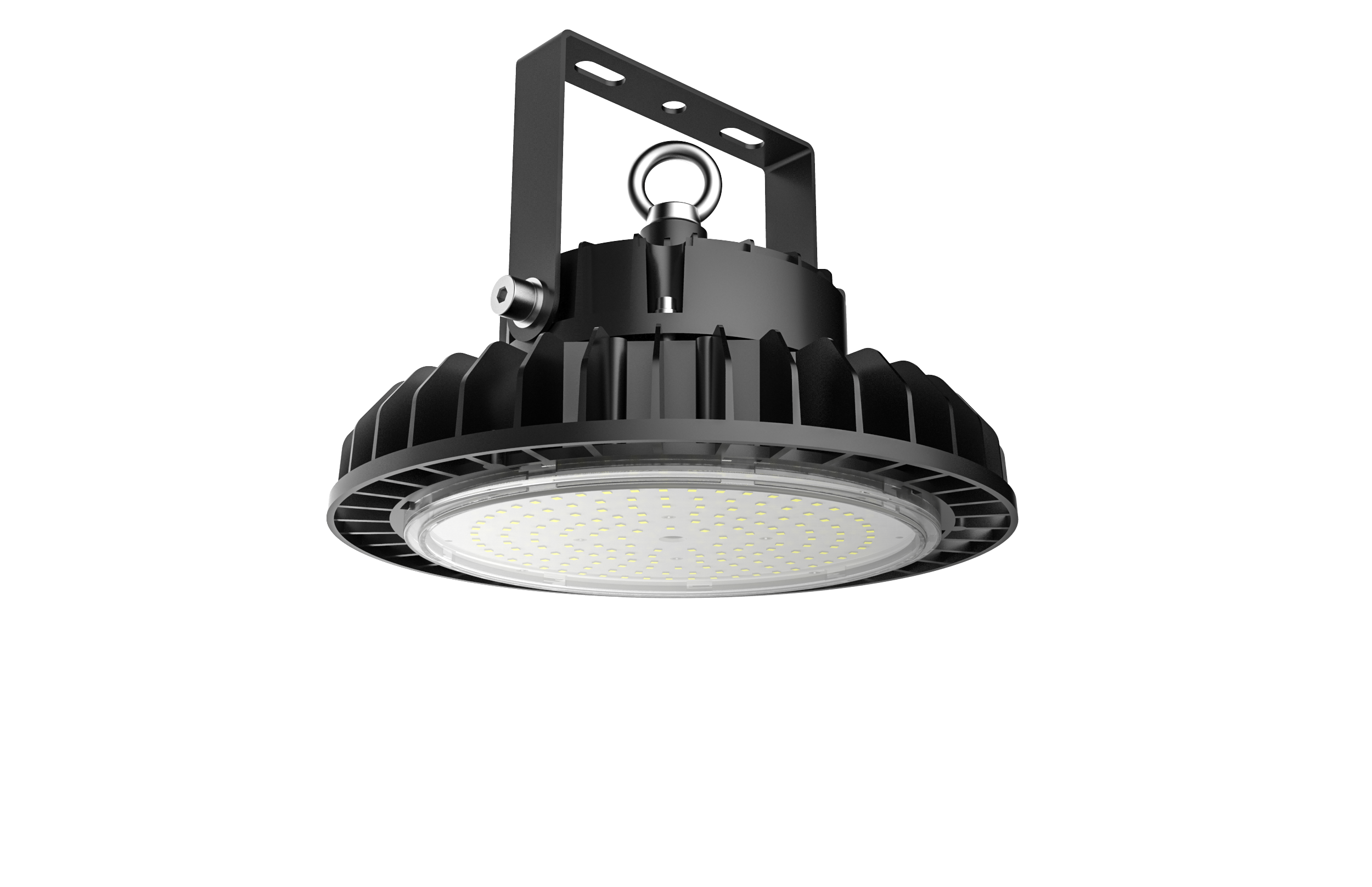

Mounting Option
|
Loop Hanging
Ceiling Mounting
|
Material
|
Aluminum Alloy
Polycarbonate Optical Lens
|
Finish
|
Powder Coating
|
Fixture Color
|
Black
|
EPA
|
NA
|
IK Rating
|
IK08
|
IP Rating
|
IP65
|
Lifespan and Warranty
|
Operating Temperature
|
-30°C to + 50°C
|
Life Time of LED
@Ta=25°C
|
53000hrs-L90
110000hrs-L80
175000hrs-L70
|
