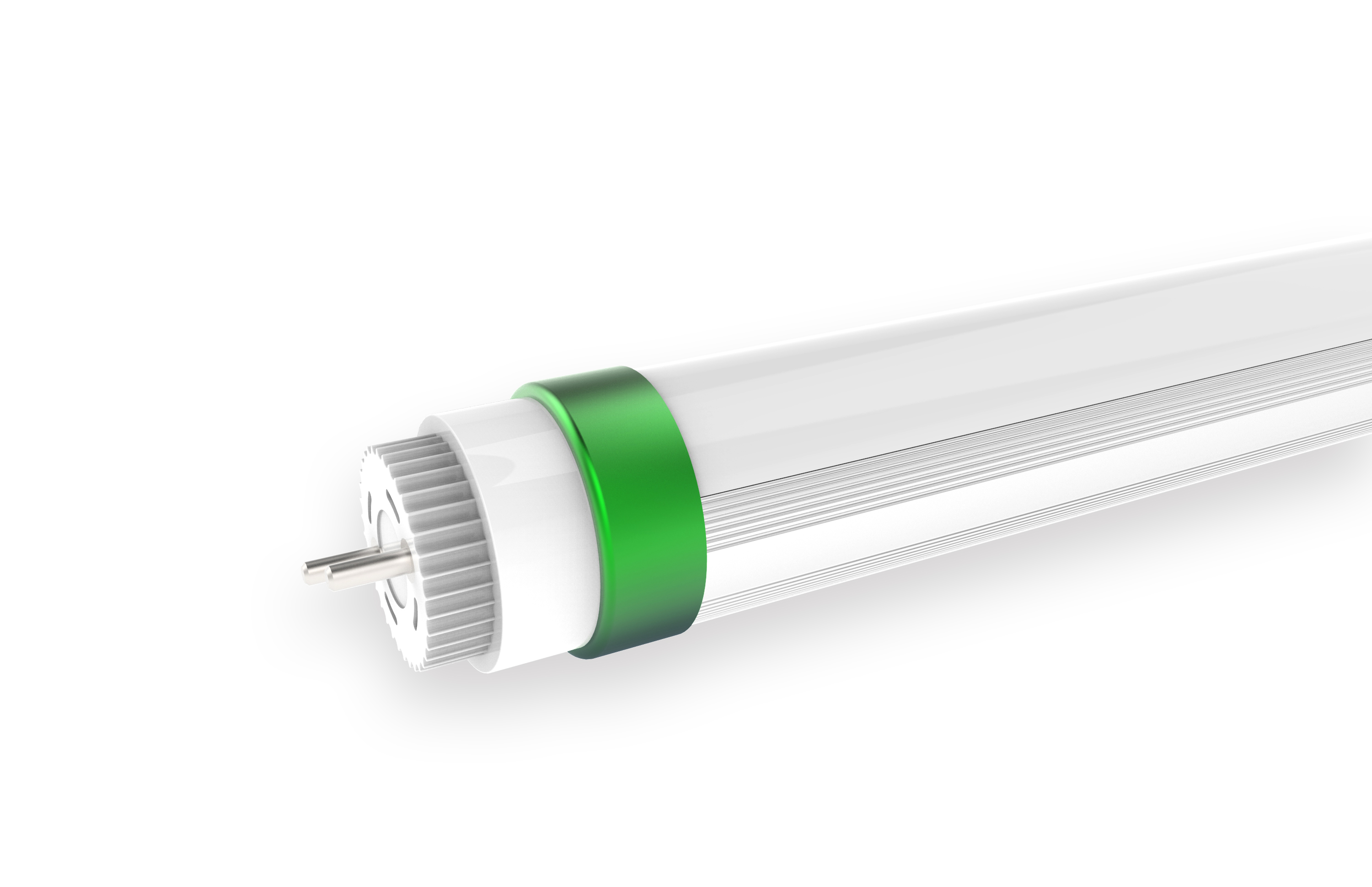

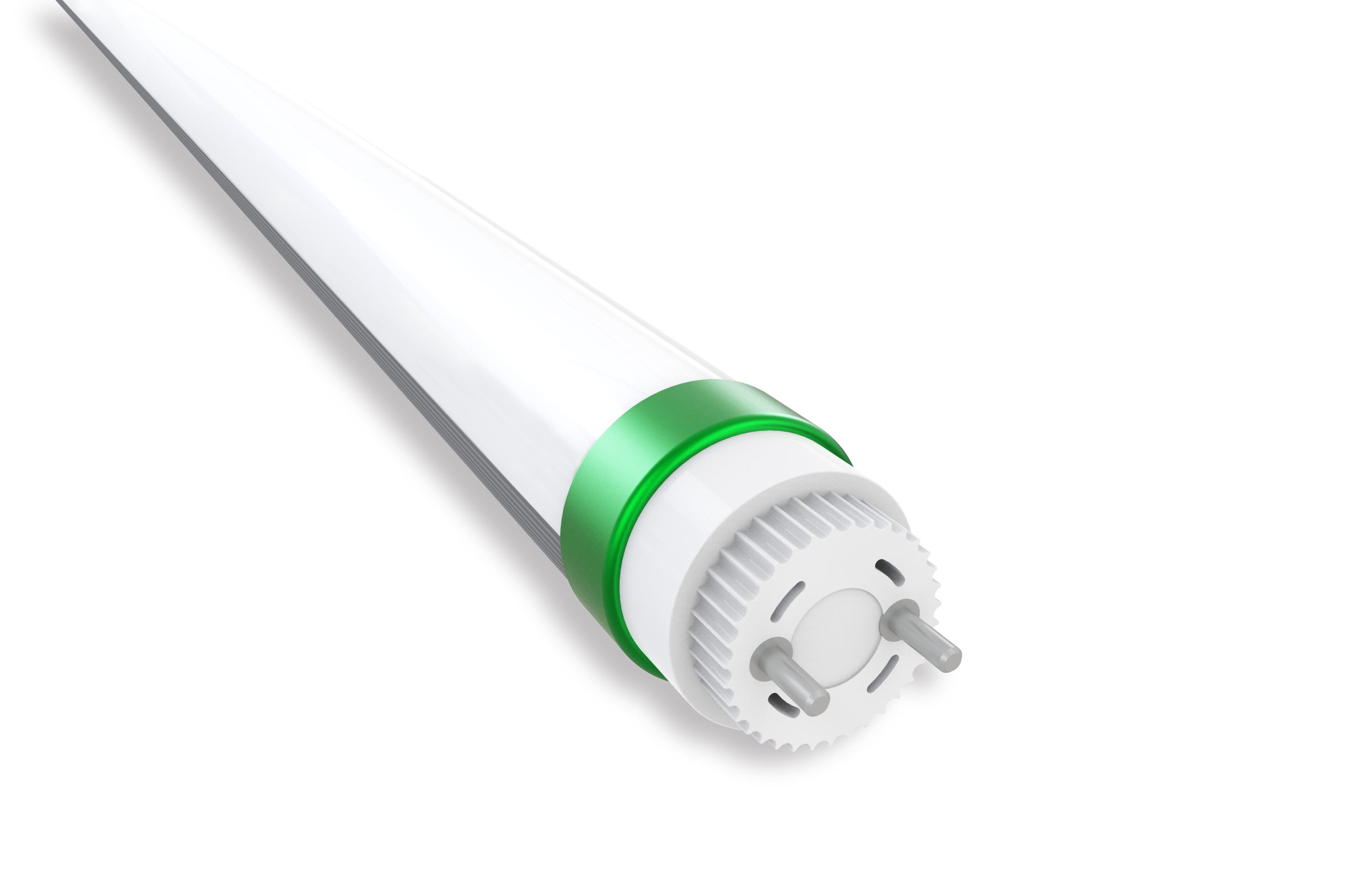

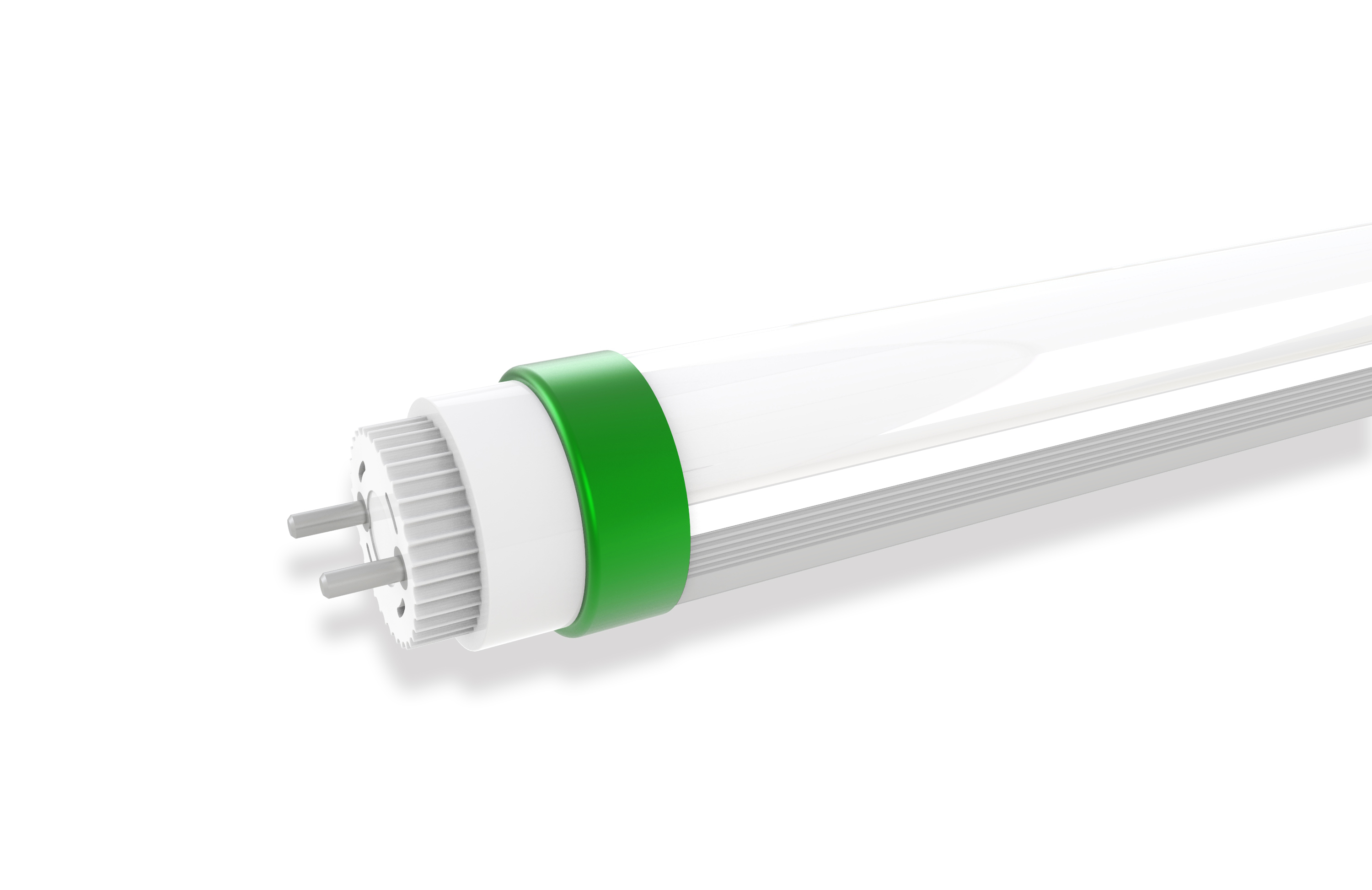

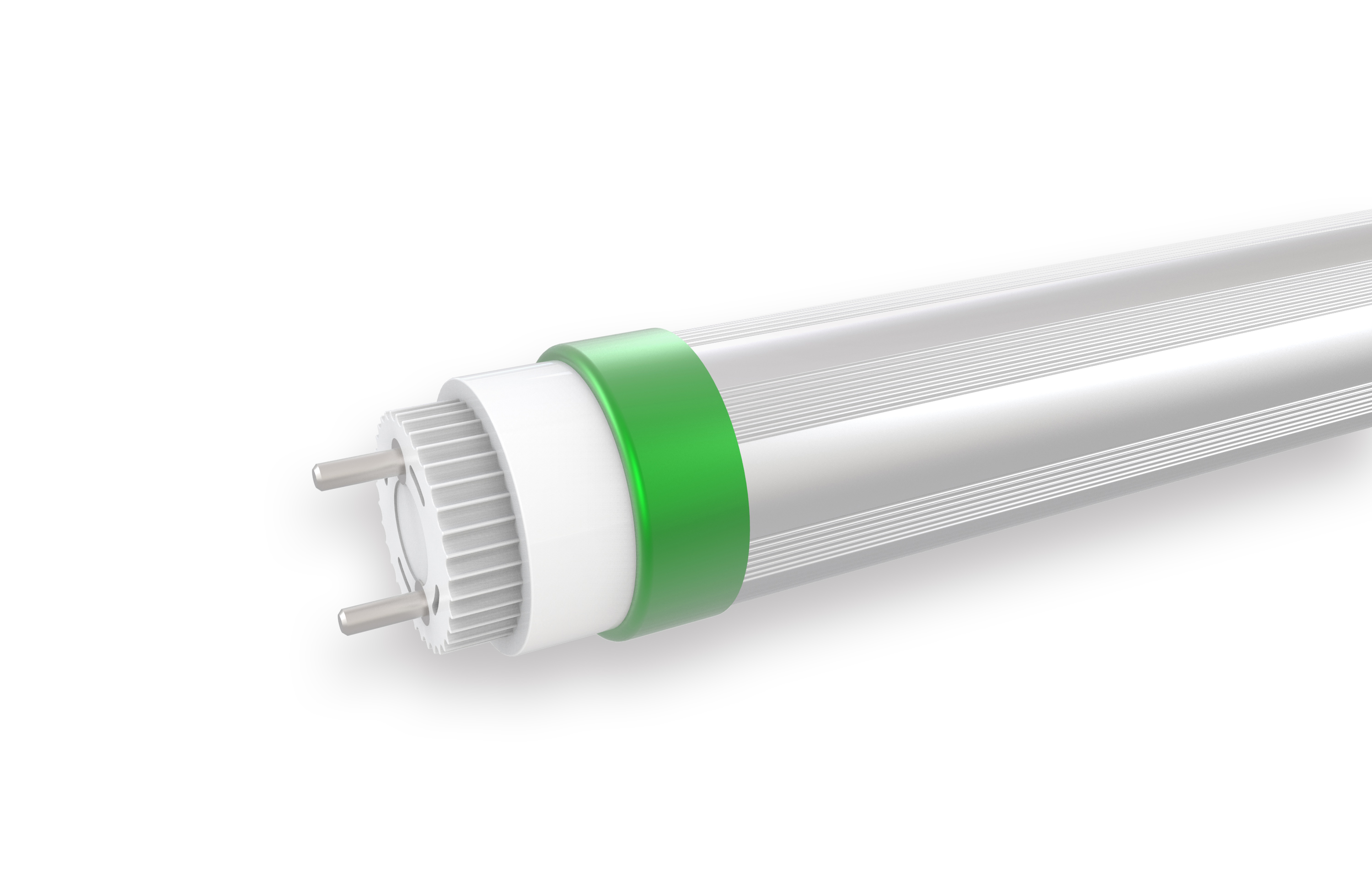

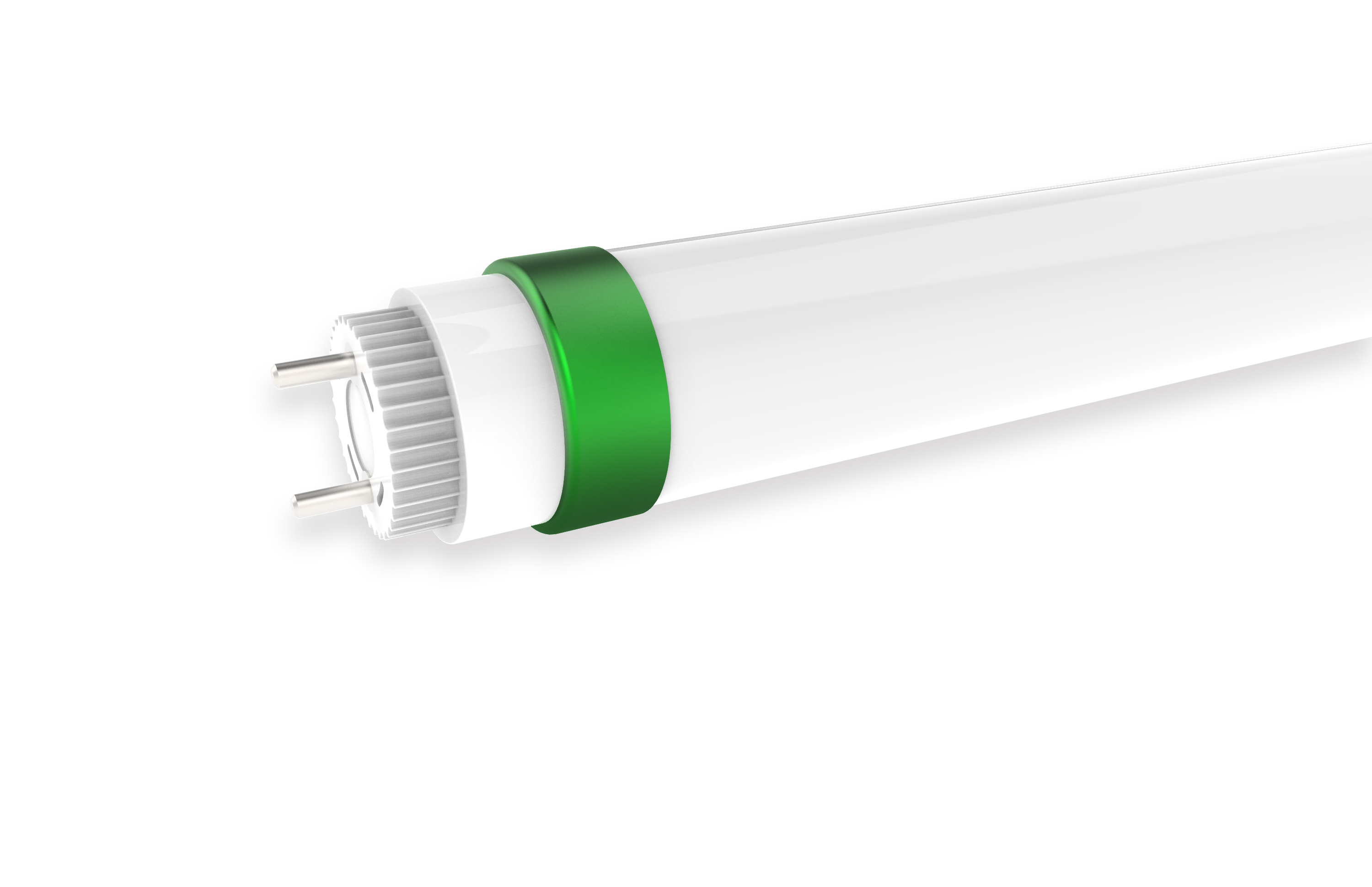

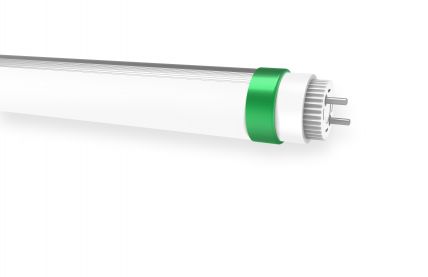

T8 LED 600 mm lamp for G13 socket, 10W consumption, 1100lm luminous flux - neutral white
The 10-watt Best-led fluorescent lamp emits neutral white light with a luminous flux value of 1100lm. The fluorescent lamp with SMD LED chips is designed to replace the classic 18W lamp of 600 mm length, which corresponds to its size and shape. Used SMD LED chips provide not only high luminous flux, low power consumption, but also a much longer life than traditional fluorescent lamps.
In contrast to the classical fluorescent lamp, LED-tubes Best-Led with respect to the materials used are environmentally friendly and resistant to mechanical damage - on one side they are equipped with an aluminum cooler and on the other a polycarbonate lacquer cover. The fluorescent lamps feature an instantaneous acceleration of 100% of their power, practically unlimited number of switching cycles and their luminous intensity.
Led fluorescent lamps are suitable for lighting workshops, offices, hospitals, shopping centers, schools and other interiors with the requirement for high-quality, high-intensity light sources and energy saving.
WARNING: This source requires changing the existing luminaire connection if it is installed in fluorescent bulbs. On request, we will send you a wiring diagram for the lighting fixtures. To use the ONE-SIDE fluorescent lamp, a special starter for LED tubes is required on the magnetic ballast. If there is an electronic ballast in the body, it must be disconnected. We also recommend replacing existing bodies with the replacement of LED tubes, and installing LED tube bodies in the TUBE LED TUBE category.
Cataloge number
|
BT8-60-10-1000N
|
Light Source
|
SMD LED
|
Beam Angle
|
130°
|
CCT
|
4000K
|
Luminous Flux
|
1100lm
|
Input Voltage
|
100-265 V AC 50/60 Hz
|
Output Voltage
|
n/a
|
Consumption
|
10 W
|
Ra (CRI)
|
>80
|
UGR
|
n/a
|
Material
|
Aluminum + Plastic
|
Operating Temperature
|
-20°C ~ +40°C
|
IP Rating
|
IP20 |
Life Expectancy
|
> 50.000h
|
Replacement
|
n/a
|
Motion Sensor
|
n/a
|
Lamp Base
|
G13
|
Dimmable
|
No
|
Color of Frame
|
n/a
|
Color Design |
n/a |
Cover Design |
n/a |
Lenght of Input Cable |
n/a |
Max Current |
n/a |
Power Factor |
n/a |
Dimension |
Dia. 26 mm, height 600 mm |
Cutout Size |
n/a |
No. of Phase connectivity |
n/a |
Other |
n/a |
