Home Linear Fixture BL-BD LINEAR LED FIXTURE 1683MM, 69W, 7320LM, IP20,4000K
LINEAR LED FIXTURE 1683MM, 69W, 7320LM, IP20,4000K

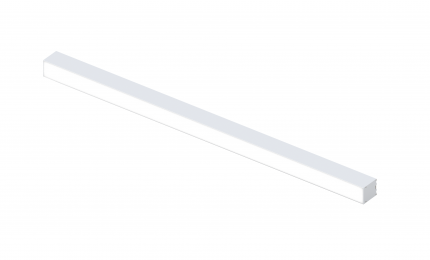

The industrial linear LED BD is designed to replace fluorescent lamps for lighting shops, stores, production areas and other commercial objects. Lamps with a length of 1683 mm can be connected in series with power only at the input luminaire to produce compact, linear LED lighting with high efficiency, long service life, low power consumption and low mounting requirements.

Individual LED liners can be ordered in two variants. It can connect the end parts to each other by accessory.

Linear LED BD 1683mm luminaires with 69W power consumption, with a light output of 7320 lm, are available in a 4000K color light source that is suitable for most applications in the commercial and industrial lighting industry. Installation of the luminaires is possible by hanging on the suspension system or by anchoring to a fixed base surface with steel mounting clips, which are supplied separately. High-quality materials and components are used to design the luminaire to ensure long life of the LED luminaire.

Cataloge number

BL-BD-8093-69

Light Source

2835 LED

Beam Angle

110°

CCT

4000K

Luminous Flux

7320lm

Input Voltage

200-240 V AC 50/60 Hz

Output Voltage

n/a

Consumption

69 W

Ra (CRI)

>80

UGR

n/a

Material

Aluminum + Plastic

Operating Temperature

-20°C ~ +45°C

IP Rating

IP20

Life Expectancy

> 30.000h

Replacement

n/a

Motion Sensor

n/a

Lamp Base

n/a

Dimmable

No

Color of Frame

White

Color Design White
Cover Design Matt
Lenght of Input Cable n/a
Max Current 420 mA
Power Factor >0.9
Dimension W.1122 mm x D.80 mm x H.93 mm
Cutout Size n/a
No. of Phase connectivity n/a
Other n/a

This product has been sold out.
